1. Why Q switch ND yag laser machine can remove tattoo?

The certain wavelength laser (1064nm and 532nm) effect on treatment areas, the abnormal pigmentation will absorb the powerful laser energy, part of them will break up into tiny particles and come out of epidermis at once, the others will be licked up by macro-phage, then be eliminated from body as the metabolism, then pigments become lighter and lighter till fully removed.

2. Functions of Q switch ND yag laser tattoo removal machine:

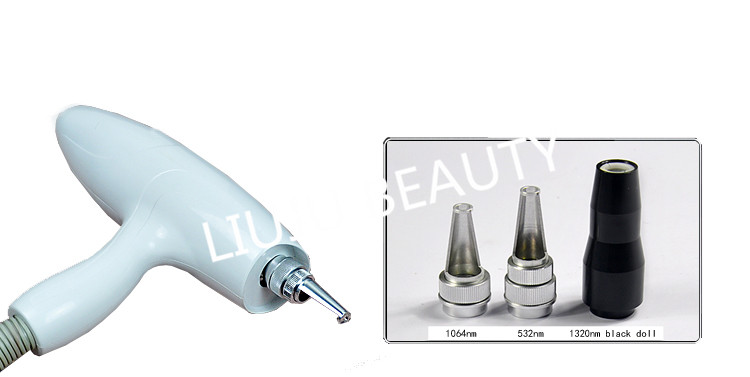

1064 nm wavelength tip: mainly cure the black, blue, cyan, bluish violet olored tattoo and pigments

532 nm wavelength tip: mainly cure the red, green, brown colored tattoos and pigments.

1064nm/532nm: eyeliner, eyebrow removal, pigmentation, freckle, age pigment, coffee spot removal skin white stria gravidarum removal blue and black nevus of ota, birthmark.

BD-LS wavelength: whitening, shrinking pore, remove acne, remove blackhead.

3. Advantages:

1) Q Switched ND: YAG laser with more powerful pulse energy, ensuring more efficient pigments removal.

2) Airout pole- Airout pole, can help water circle very well, can protect handle form destroy.

3) Emergency button-If anything emergent, you can press the red emergency button, then the machine will stop working.

4) High energy, no side effects, non-invasive, safe, easy to operation

5) Multi-language system, LCD display.

6) Will not destroy hair follicle, will not injure ordinary skin

4. Technical parameters:

Voltage: AC220V (110V) / 5A 50Hz (60Hz)

Wavelength: 1064nm, 532nm BD-LS (Black doll)

Type of laser: Hisui gem Q switch/KTP/YAG

Pulse energy: 2000MJ

Width of pulse: 1-10ns

Frequency: 1-10Hz

YAG Bar Size: # 6

Spot diameter: 1-10mm

Cooling system: wind + water +semiconductor

Packing size: 45×58×47cm

Gross weight: 23KG
