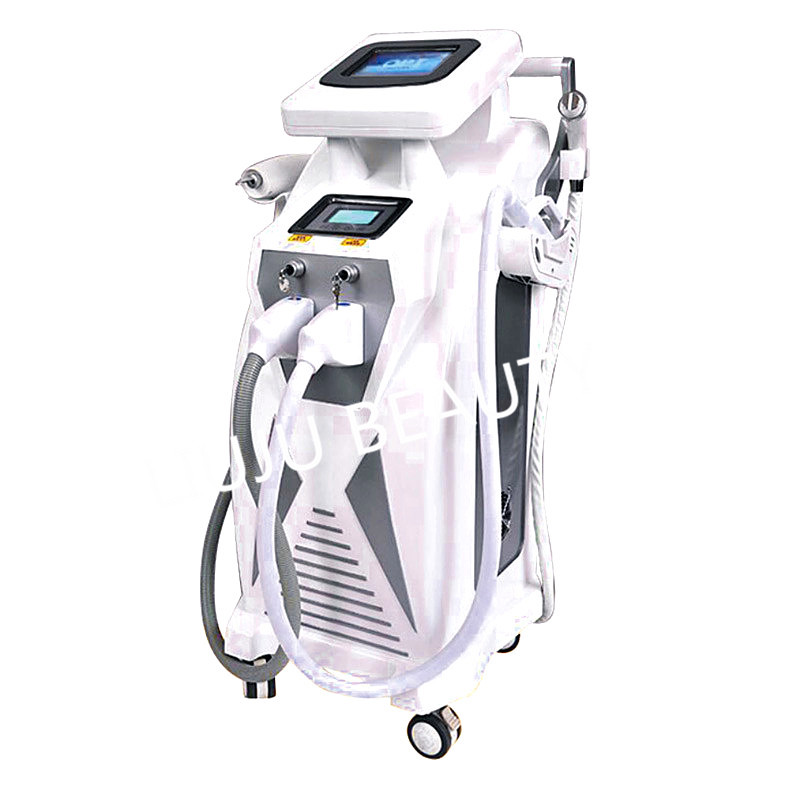

Multifunctional Laser RF OPT SHR beauty machine (LO-03)

Multifunctional Laser RF OPT SHR beauty machine
Multifunctional Laser RF OPT SHR beauty machine

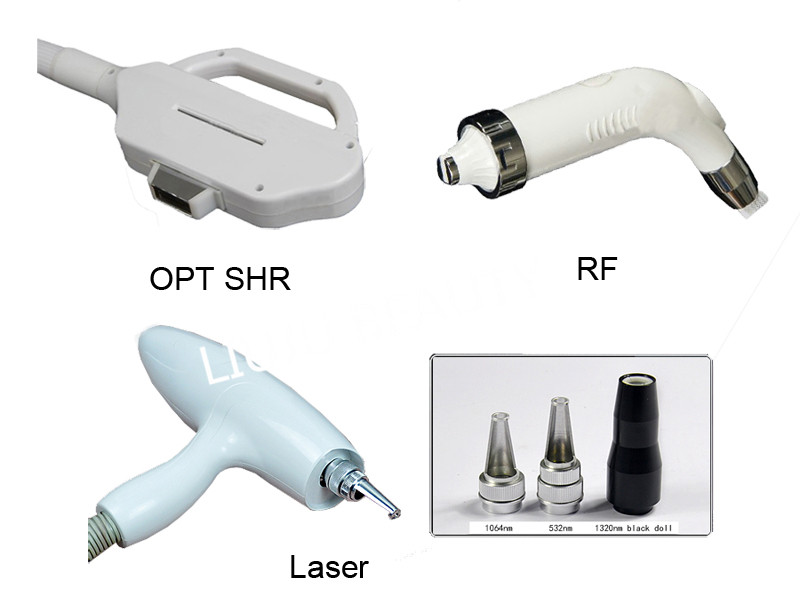

Laser RF OPT SHR machine handles
Product Name : Multifunctional Laser RF OPT SHR beauty machine (LO-03)
Price terms : EXW, FOB, CIF
Payment terms : T/T, western union, money gram
MOQ : 1 piece
Delivery time : within 7 working days after payment made
Warranty : 1 year for machine, 3 months for accessory parts
Directions

1. Working principle:

OPT SHR:

SHR (Super Hair Removal), it's a revolutionary technology of hair removal which achieves painless hair removal. With stationary low energy and bigger frequency (from 1 to 10Hz), moving IPL to do fast and painless hair removal treatment. SHR machine works with single pulse mode which can emit energy averagely. When using SHR, the device is passed over the tissue multiple times (in motion) using low energy but a high rate of repetition (up to 10Hz, i.e. 10 times per second) instead of using the traditional method with single, high-energy impulses. The hair melanin, as well as the tissue of the stem cells, is heated with low energy at a slow pace and over a longer period of time to a comfortable temperature of 45° Celsius.






RF:

RF system works through the unique innovative intelligent peels platform and tips role on the skin, resulting in a different proportion of the thermal effects to heat extensively at deep skin, promote collagen contraction, skin tightening and cellulite reduction. It can fit individualized treatment programs based on customer demand for different skin, improve skin texture and gloss, deep pigment issues and treatment of skin lesions. RF treatment is of non-surgical, no depth chemical peel, and you can easily get the skin whitening.



ND YAG Laser:

The Q-switched ND YAG laser takes specific wavelength light at high energy, which is absorbed by the pigment and shatters. Make the pigment into particles, and break them into very small fragments. Some parts will consequently bounce out of the skin and other parts will spilt even further into minute particles, which eventually will be engulfed by the phagocytes and ultimately gets eliminated by the lymphatic system.


2. Functions:

1) Permanent hair removal

2) All kinds of spots removal and freckle removal

3) Acne therapy

4) Vascular therapy

5) Skin whitening and face lifting

6) Shrink large pores

7) Remove the pigment skin pathological changes

8) Tattoo removal, eyebrow line/eye line/lip line pigment removal

9) Remove the corium spots


3. Parameters:

OPT SHR

Light Source

Intense Pulsed Light E-Light IPL OPT SHR

wavelength

430-1200nm

Light guide

Crystal Light Guide

Energy density

50J/cm2

Pulse

1-10 Pulses

Pulse Duration

1-40ms

Pulse Repetition Rate

1-10hz

RF Energy

60J/cm2

Spot size

10*40mm

Cooling system

Semiconductor + Water + Air

Fuse Specification

Ø5×2510A

Voltage

AC220V/50HZ , AC110V/60HZ

Power

2000W

Packing size

128*65*58cm

Gross weight

57KG

Laser

Laser Type

Q Switched ND YAG Laser

Wavelength

532nm,1064nm,1320nm

Energy

1000mj

Power

500W

Spot Size

1-6mm

Pulse Width

8-10ns

Frequency

1-6Hz

Cooling System

Water circulation+wind

RF

RF Frequency

5MHZ

RF Intensity Range

1J~20J

Power

350W

Treatment Tips

0.25cm²,3cm²,9cm²

Treatment Tips Life

900/1800/3000 Hours

Cooling system

Semiconductor cooling, Water cyclical cooling
