1. What is HIFU?

HIFU (High Intensity Focused Ultrasound) owns the non-invasive and focused penetrating advantage. By HIFU technology, it uses the non-invasive way (without surgery or injection) to act on designated subcutaneous area. The subcutaneous tissue will produce transient heat under high-frequency vibration, to up to the treatment energy which makes the skin tissues cells regrown.

DS-4.5 tip penetration depth: 4.5mm

DS-3.0 tip penetration depth: 3.0mm

DS-1.5 tip penetration depth: 1.5mm

2. What’s the SMAS?

SMAS (Superficial Muscular Aponeurotic System) is a layer of connective tissue membrane which widely covered in deep tissue under the dermis, which connects fat and facial superficial muscle, extends and consolidates the bone of face, closely contacts epidermis, dermis and subcutaneous tissue together, and these layers structure form the facial contour, support the integrity of skin, muscles and bone.

3. Treatment Scope:

1) Remove wrinkles on around forehead, eyes, mouth, etc.

2) Lift and tighten both cheeks skin

3) Improve skin elasticity and shaping contour

4) Improve jaw line, reducing “marionette lines”

5) Tighten the skin tissue on forehead, lifting the eyebrows lines.

6) Improve skin complexion, making the skin delicate and bright

7) Match with injecting beauty like Hyaluronic acid, collagen, to resolve more aging problem

8) Remove neck wrinkles, protecting neck aging

4. Advantages:

1) More than 15,000 shots according to quality inspection and clinical tests, ensuring each shot effect into the right depth.

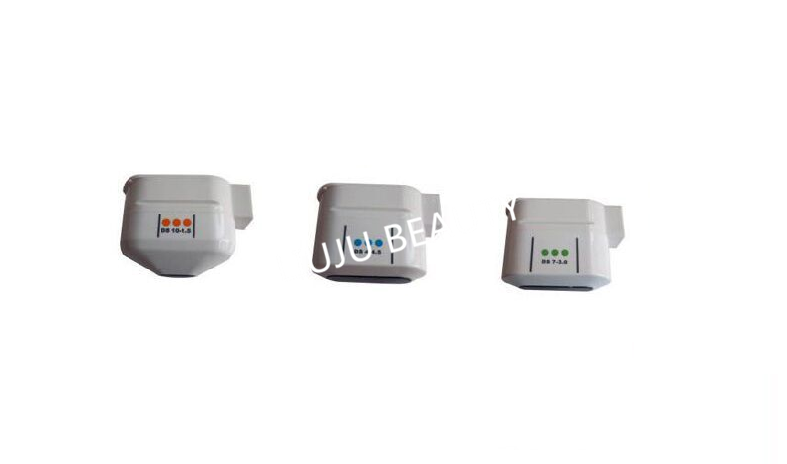

2) Equipped with 3 heads (1.5mm, 3.0mm, 4.5mm), precisely acting on different depths of the skin.

3) The energy will skip the epidermis, leaving no damages.

4) It will produce thermal effect to the dermal collagen fibers and stimulate the fat layer and SMAS. The result is much better than RF.

5) The skin will be lifted and tightened at once, and effect will last for 12-24 months.

6) There is no post-surgery down time and you can resume your normal activities immediately.

7) Easy to control and operate, no consumables, cost-saving.

5. Operation steps:

1) Clean the Skin.

2) Take a photo before treatment, and paint on the preoperative lifting location with make - up pencil.

3) According to the skin thickness to select appropriated transducer (Transmitter).

4) Set suitable input intensity (such as1.0-1.5J), focal length and spacing (such as 1.5mm).

5) Applying ultrasonic plentiful gel as couplant between transducer and skin.

6) Face lifting operation on the note of power line, forming a line thermal condensed node in the specified depth under skin when the transmitting button is pressed per time, operating continued on the powder line until the specified location transmission is completed. The treatment parts such as face, chin and both sides of neck.

7) Don’t operate on marginal mandibular nerve and supra or bital nerve.

8) No recovery period after treatment, daub some moisture product and make up immediately.

9) Only once, the comprehensive effect will gradually appear in two or three months, some people may do this treatments several times.

6. Parameters:

Power: 150W

Number of heads: 3 heads (1.5mm, 3.0mm, 4.5mm)

Frequency: 4Mhz (4.5mm penetration depth)

                     7Mhz (3.0mm penetration depth)

                    7MHZ (1.5mm penetration depth)

Energy output: 0.1-2.0J (0.1J/step)

Shot length: 5mm-25mm (5mm/step)

Space between Thermal Point: 1.0mm- 4.0mm

Handle shots: About 5000shots/head

Heat temperature: 60-70 degree

Screen size: 15 inches touch screen

Voltage: 110V-240V, 50/60Hz

Packing size: 51*55*48cm, 59*105*67cm

G.W: 50KG
