1. Working therory:

1) skin tightening

High Intensity Focused Ultrasound (HIFU) directly delivers heat energy to skin and subcutaneous tissue that can stimulate and renew the skin's collagen and thus consequently improving the texture and reducing sagging of the skin. It literally achieves the results of a facelift or a body lifts without any invasive surgery or injections, moreover, an added bonus of this procedure is that there is no downtime. This technique can be applied to the face as well as the whole body, and also, it works equally well for people of all skin colours, in contrast to that of lasers and the intense pulse lights.

2) 13MM fat removal

Apply high intensity focused ultrasound, generate focused energy and go deeoer into the cellulite to break cellulite. it is an invasive, impressive and long- last effective tratement to reduce fat, especially for abdomen and thigh.

High intensity focused ultrasound HIFU machine targets at fat of 13mm(depth of penetration), heating up the fat tissue, combine with high energy and good penetration to resolve the fat, during the treatment, the triglyceride and fatty acid excrete by the process of metabolism, and the vessal and nurve will not be damaged.

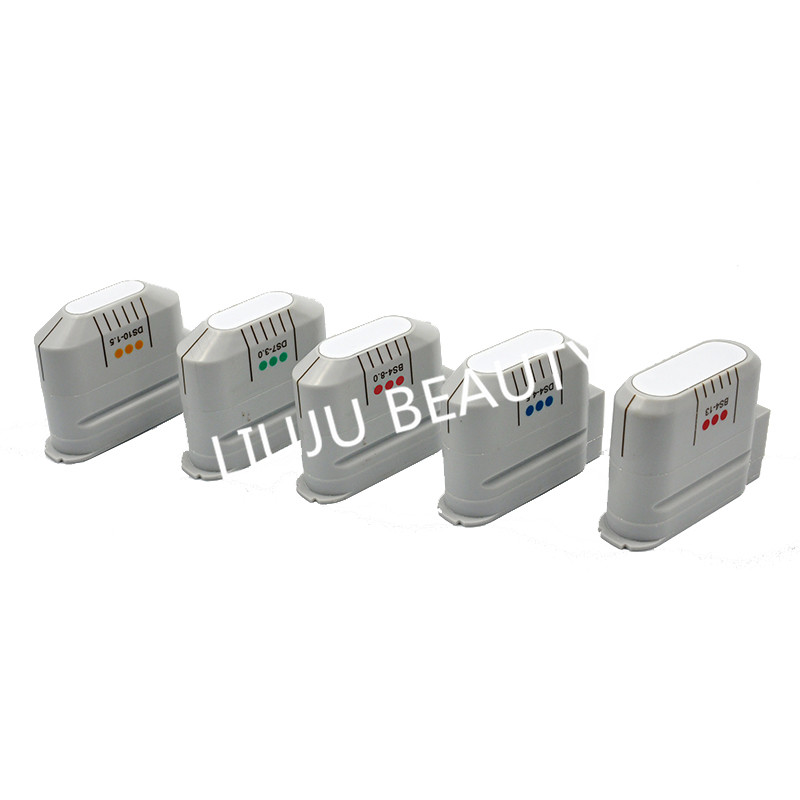

2. The transducer information:

1. Transducer DS-4.5mm, 4MHZ frequency used to transmit high energy focused ultrasound to the skin, subcutaneous tissue, the ultrasound to penetrate the skin to a depth of 4.5mm, direct subcutaneous SMAS layer, forming “heat coagulation” regional, targeted to thicker skin, such as cheeks, etc.

2. Transducer DS-3.0mm, 7MHz frequency ,used to release ultrasound energy into the dermis layer of 3.0mm, is responsible for activating the skin’s dermal layer of collagen, effectively enhance the effect of the consolidation of the outline, but also improve large pores and reduce the appearance of wrinkles.

3. Transducer DS-1.5mm, 7MHZ frequency, used to transmit high-energy focused ultrasound to the epidermis tissue, the ultrasound to penetrate the skin to a depth of 1.5mm, is responsible for activating the skin epidermis in thinner tissue.

4. Transducer DS-13mm, the 13mm head is responsible for transmitting 4 MHZ high intensity focused ultrasound subcutaneous fat layer to melt the fat cells. Then the metabolites of fat cells will be excreted by human body’s metabolis. It is targeting the body.

Note: DS-13mm transducer is ONLY do for body fat reduction, skin tightening.

3. Advantages:

1) More than  50,000 shots according to quality inspection and clinical tests, ensuring that each shot effects into te right depth.

2) Equipped 5 heads (1.5mm, 3.0mm, 4.5mm and 13mm), precisely acting on different depths of the skin.

3) The energy will skip the epidermis, leaving no damages.

4) It will produce thermal effect to the dermal collagen fibers and stimulate the fat layer and SMAS. The result is far better than RF.

5) The skin will be lifted and tightened at once, and effect will last for 12-24 months.

6) There are no post-surgery down time and you can resume your normal activities immediately.

7) Easy to control and operate, no consumables, cost-saving.

8) In one hifu machine, customers could get skin care and body shaping weight loss together.

4. What’s the SMAS?

SMAS (Superficial Muscular Aponeurotic System) is a layer of connective tissue membrane which widely covered in deep tissue under the dermis, which connects fat and facial superficial muscle, extends and consolidates the bone of face, closely contacts epidermis, dermis and subcutaneous tissue together, and these layers structure form the facial contour, support the integrity of skin, muscles and bone.

5. Treatment scope:

1) Remove wrinkles on around forehead, eyes, mouth, etc.

2) Lift and tighten both cheeks skin.

3) Improve skin elasticity and shaping contour.

4) Improve jaw line, reducing “marionette lines”

5) Tighten the skin tissue on forehead, lifting the eyebrows lines.

6) Improve skin complexion, making the skin delicate and bright

7) Match with injecting beauty like hyaluronic acid, collagen, to resolve more aging problem

8) Remove neck wrinkles, protecting neck aging.

6. Operation steps:

1) Clean the skin.

2) Take a photo before treatment, and paint on the preoperative lifting location with make-up pencil.

3) According to the skin thickness to select appropriated transducer (Transmitter).

4) Set suitable input intensity (such as1.0-1.5J), focal length and spacing (such as 1.5mm).

5) Applying ultrasonic plentiful gel as couplant between transducer and skin.

6) Face lifting operates on the note of power line, forms a line thermal condensed node in the specified depth under skin when the transmitting button is pressed per time, operating continued on the powder line until the specified location transmission is completed. The treatment parts such as face, chin and both sides of neck.

7) Don't operate on marginal mandibular nerve and supra or bital nerve.

8) No recovery period after treatment, daub some moisture product and make up immediately.

9) Only once, the comprehensive effect will gradually appear in two or three moths, some people may do this treatment several times.

7. Specifications:

Power: 150W

Number of heads: 1.5mm for eye; 1.5mm, 3.0mm, 4.5mm for face, 13mm for body (5 heads)

Frequency: 4Mhz (13mm penetration depth)

                   4Mhz (4.5mm penetration depth)

                   7Mhz (3.0mm penetration depth)

                   7MHZ (1.5mm penetration depth)

Energy output: 0.1-2.0J (0.1J/step)

Shot length: 5mm-25mm (5mm/step)

Space between Thermal Point: 1.0mm- 4.0mm

Handle shots: 10000shots/head

Heat temperature: 60-70 degree

Screen Size: 15 inch touch screen

Voltage: 110V-240V, 50/60Hz

Packing size: 51*55*48cm, 59*105*67cm

G.W: 50KG
